DS-2CE56D7T-IT3

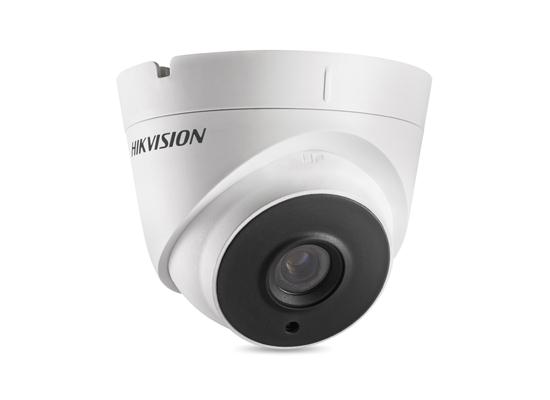

HD1080P WDR EXIR Turret Camera

• 2 Megapixel high-performance CMOS
• Analog HD output, up to 1080P resolution
• True Day/Night
• OSD menu, DNR, Smart IR
• True WDR, up to 120dB
• EXIR technology, up to 20/40m IR distance
• IP66 weatherproof
• Up the Coax(HIKVISION-C)



Video Camera รุ่น DS-2CE56D7T-IT3





Camera
Image Sensor:|2MP CMOS Image Sensor
Signal System:|PAL/NTSC
Effective Pixels:|1928(H)*1088(V)
Shutter Time:|1/25(1/30) s to 1/50,000 s
Lens Mount:|M12
Adjustment Range:|Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day& Night:|IR cut filter with auto switch
Wide Dynamic Range:|120dB
Video Frame Rate:|1080p@25fps/1080p@30fps
HD Video Output:|1 Analog HD output
Synchronization:|Internal Synchronization
S/N Ratio:|More than 62 dB
Up the Coax:|Support
Menu
Auto White Balance:|Auto/MWB
BLC:|Support
AGC:|Support
Language:|English/Chinese
General
Operating Conditions:|-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power Supply:|12 VDC±15%
Weather Proof:|IP66
IR Range:|Up to 20m
Communication :|Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimension:|φ110mm×93.2mm (φ4.33”×3.67”)
Weight:|350g (0.77lb)
